Wireless Standard |
Ø 802.11a Ø 802.11b/g/n Ø 802.11ac |
|
Wireless Signal Rates |
Ø 2.4G 802.11n 2T2R max 300Mbps Ø 2.4G 802.11g 54Mbps Ø 2.4G 802.11b 11Mbps Ø 5G 802.11ac 2T2R max 866Mbps Ø 5G 802.11n 2T2R max 300Mbps Ø 5G 802.11a 54Mbps |
|
Frequency |
Ø 802.11b: ISM band 2.400 GHz—2.484 GHz (according to the local regulations) Ø 802.11g: ISM band 2.400 GHz—2.484 GHz (according to the local regulations) Ø 802.11n draft: ISM band 2.400 GHz—2.484 GHz (channel BW=20/40 MHz) Ø 802.11ac draft: ISM band 5.150 GHz—5.825 GHz (channel BW=20/40/80 MHz) |
|
Modulation Schemes |
Ø 802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS Ø 802.11b: CCK, DQPSK, DBPSK Ø 802.11n: 64QAM, 16QAM, QPSK, BPSK Ø 802.11ac: 256QAM, 64QAM, 16QAM, QPSK, BPSK |
|
Wireless Range |
Ø 100m indoor coverage area Ø 300m outdoor coverage area (varying depending on the actual environment) |
|
Wireless Security |
64/128-bit WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption |
|
SSID broadcast control |
Enabled |
|
Transmission Speed |
Auto |
|
Automatic Quality of Service (QoS) for reliable Internet, voice and gaming applications |
Support |
|
Wi-Fi Protected Setup |
Default Enabled |
|
Cafe-style guest network |
Support |
|
Antennas |
Ø 2.4G（2X2）:External Antenna:5dBi Ø 5.8G(2X2):External Antenna: 5dBi |
|
Transmit Power |
2.4 GHz Band/HT-20 l 19dBm(±1.5 dB) MCS0/8 l 18dBm(±1.5 dB) MCS1/9 l 18dBm(±1.5 dB) MCS2/10 l 16dBm(±1.5 dB) MCS3/11 l 16dBm(±1.5 dB) MCS4/12 l 15dBm(±1.5 dB) MCS5/13 l 15dBm(±1.5 dB) MCS6/14 l 14dBm(±1.5 dB) MCS7/15 2.4 GHz Band/HT-40 l 19dBm(±1.5 dB) MCS0/8 l 18dBm(±1.5 dB) MCS1/9 l 18dBm(±1.5 dB) MCS2/10 l 16dBm(±1.5 dB) MCS3/11 l 16dBm(±1.5 dB) MCS4/12 l 15dBm(±1.5 dB) MCS5/13 l 15dBm(±1.5 dB) MCS6/14 l 14dBm(±1.5 dB) MCS7/15 5.8G: l 16dBm(±1.5 dB) at 6Mbps l 16dBm(±1.5 dB) at 9Mbps l 16dBm(±1.5 dB) at 12Mbps l 16dBm(±1.5 dB) at 18Mbps l 16dBm(±1.5 dB) at 24Mbps l 15dBm(±1.5 dB) at 36Mbps l 15dBm(±1.5 dB) at 48Mbps l 14dBm(±1.5 dB) at 54Mbps 11AC: l 20M mode: 13±1.5dBm l 40M mode: 13±1.5dBm l 80M mode: 13±1.5dBm |
|
RX sensitivity |
2.4GHz Band/HT-20 l -82dBm at MCS 0/8 l -79dBm at MCS 1/9 l -77dBm at MCS 2/10 l -74dBm at MCS 3/11 l -70dBm at MCS 4/12 l -66dBm at MCS 5/13 l -65dBm at MCS 6/14 l -64dBm at MCS 7/15 2.4GHz Band/HT-20 l -79dBm at MCS 0/8 l -76dBm at MCS 1/9 l -74dBm at MCS 2/10 l -71dBm at MCS 3/11 l -67dBm at MCS 4/12 l -63dBm at MCS 5/13 l -62dBm at MCS 6/14 l -61dBm at MCS 7/15 |
|
5.8G: l -85dBm at 6Mbps l -84dBm at 9Mbps l -82dBm at 12Mbps l -80dBm at 18Mbps l -77dBm at 24Mbps l -73dBm at 36Mbps l -69dBm at 48Mbps l -68dBm at 54Mbps |
|
|
11AC: l 20M mode: -57dBm l 40M mode: -54dBm l 80M mode: -51dBm |
|
|
Network Features |
|
|
Operation Mode |
Ø Router Mode(Default WAN Connection) Ø AP Mode |
|
MAC cloning support |
Support |
|
Support |
|
|
Multi Range Port Forwarding |
Support |
|
DHCP Server |
Support |
|
QoS Traffic Control(IP) |
Support |
|
IGMP Snoop |
Support |
|
IGMP Proxy v1 v2 v3 |
Support |
|
TR069 |
Support |
|
DNS Relay |
Support |
|
UPnP |
Support |
|
DDNS |
Support |
|
Virtual Server, Special Application and DMZ host ideal for creating a website within your LAN |
Support |
|
Security Features |
|
|
NAT for basic Firewall support |
Support |
|
Packet Filtering Firewall |
Support |
|
Stateful Packet Inspection Support |
Support |
|
Password Authentication to Router |
Support |
|
Syestem Features |
|
|
Language Support |
English/Chinese |
|
Default Language |
English/Chinese |
|
Login URL |
Http:// 192.168.1.1 |
|
Login Name |
Admin |
|
Login Password |
Admin |
|
Router Lan IP |
192.168.1.1 |
|
IP Subnet MSK |
255.255.255.0 |
|
Config download and upload |
Support |
|
Status |
Support |
|
Remote and Web management |
Support |
|
Auto Time Sync |
Support |
|
Echo mode ( wireless switch schedule) |
Support |
|
Physical Interfaces |
|
|
Interface |

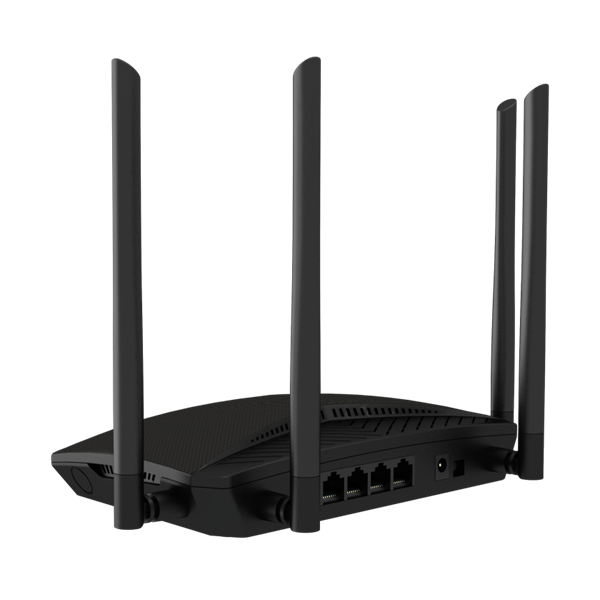

Giga RJ45*5 USB Host(DWR-C5700T<USB*0>) (DWR-C5710T<USB*1>) Reset/WPS button*1 Power Switch*1(optional) Power jack*1 |
|
Button |
Reset/WPS button*1+ Power Switch*1(optional) |
|
LEDs |
Power ,2.4G Wi-Fi, 5G Wi-Fi, WAN,LAN,USB |
|
Power jack |
12V DC,1A |
|
Environment Requirement |
|
|
Operating Temperature |
0ºC～45ºC |
|
Storage Temperature |
-40ºC～70ºC |
|
Operating Humidity |
10%～90%, non-condensing |
|
Storage Humidity |
5%～90%, non-condensing |
|
Power Supply |
Input power: 100-240VAC, 50/60Hz Output power:12VDC/1A |
|
EMC and Safety |
|
|
Regulatory Compliance |
CE |
|
Safety Regulations |
|
|
Green Standard |
|
|
Physical Characteristics |
192x115x30mm |
|
Weight |
308g |
